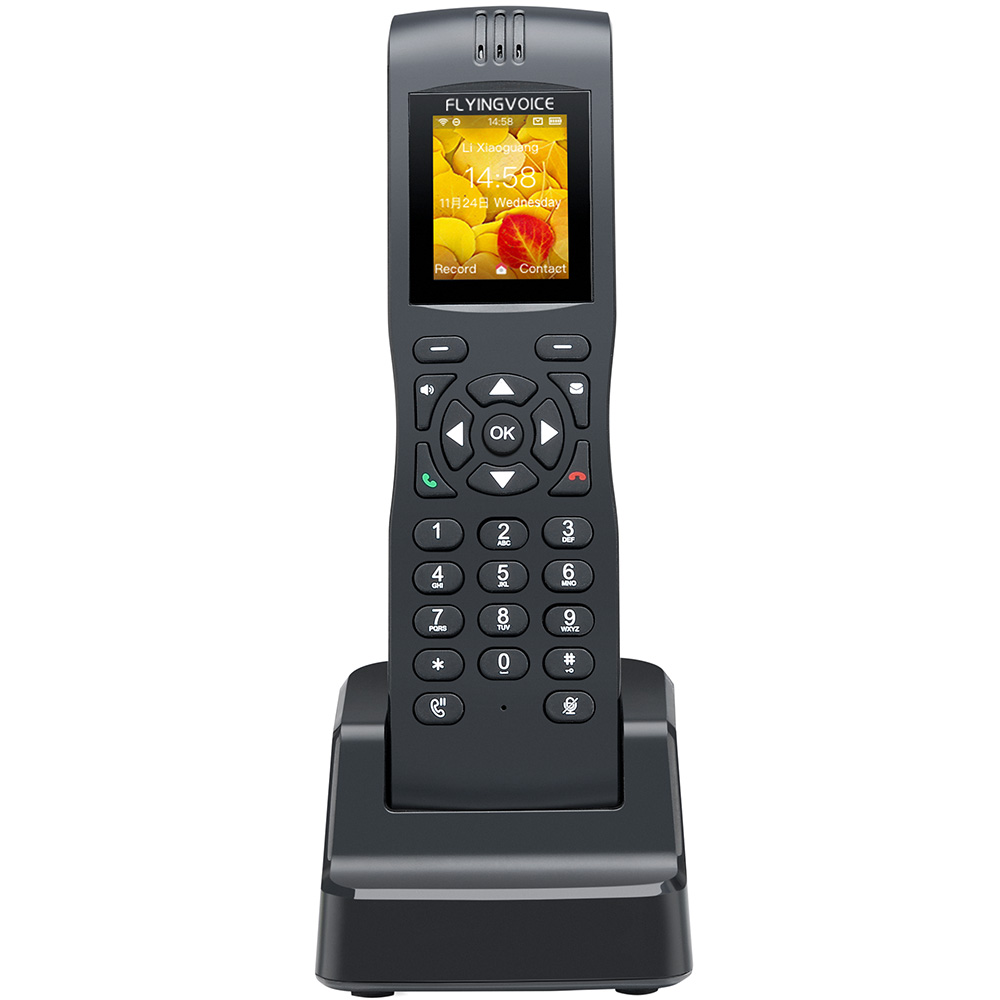

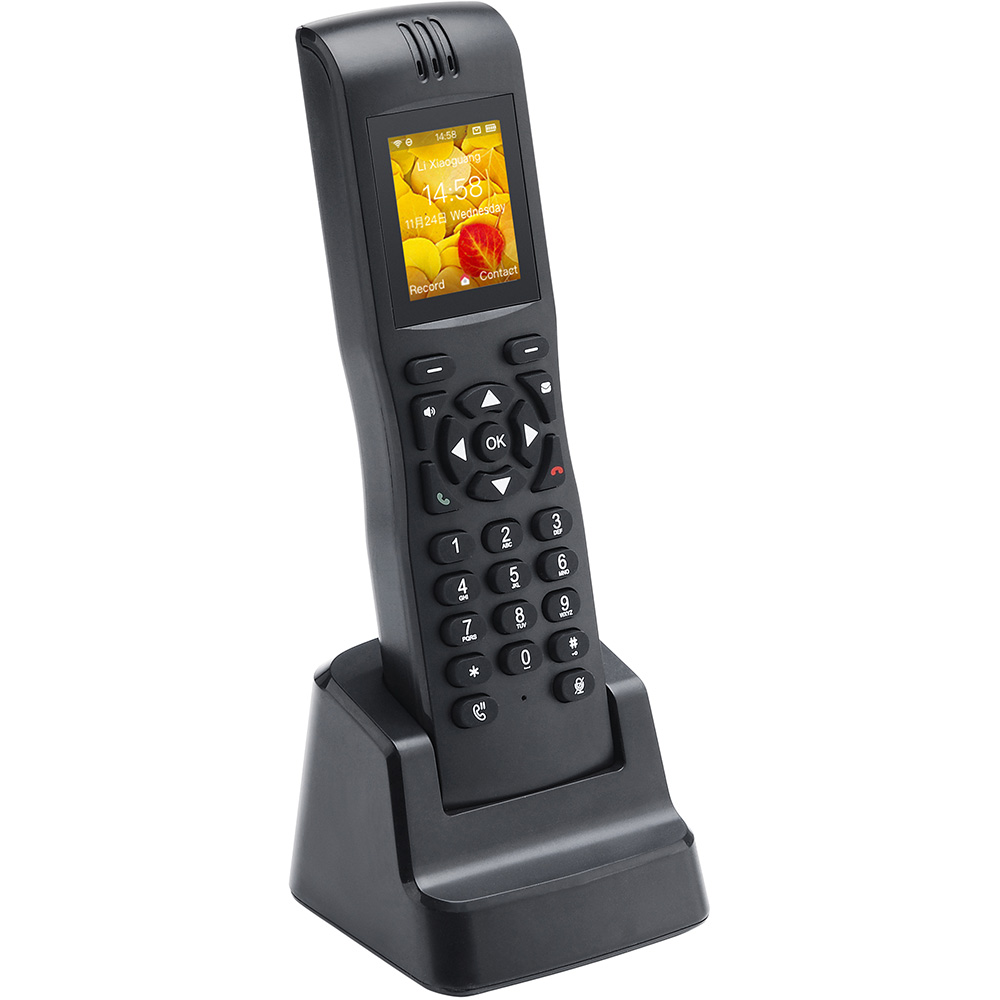

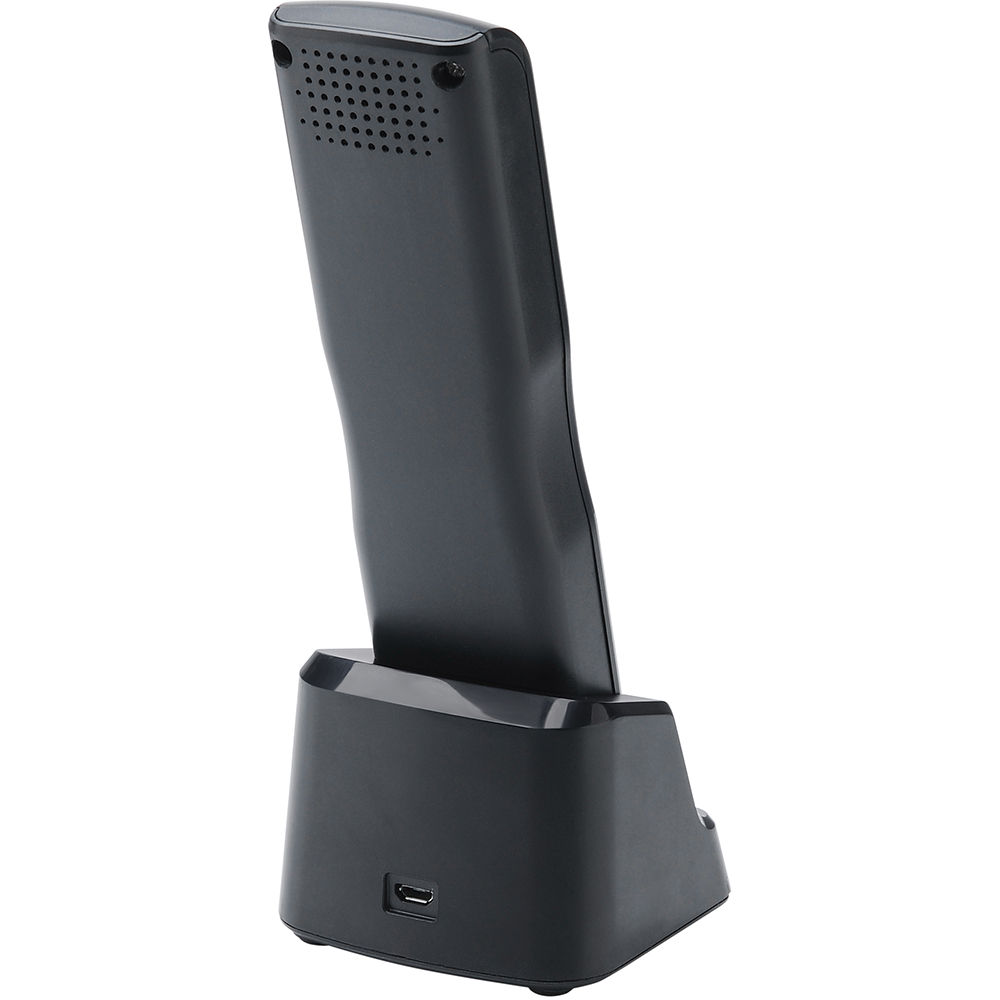

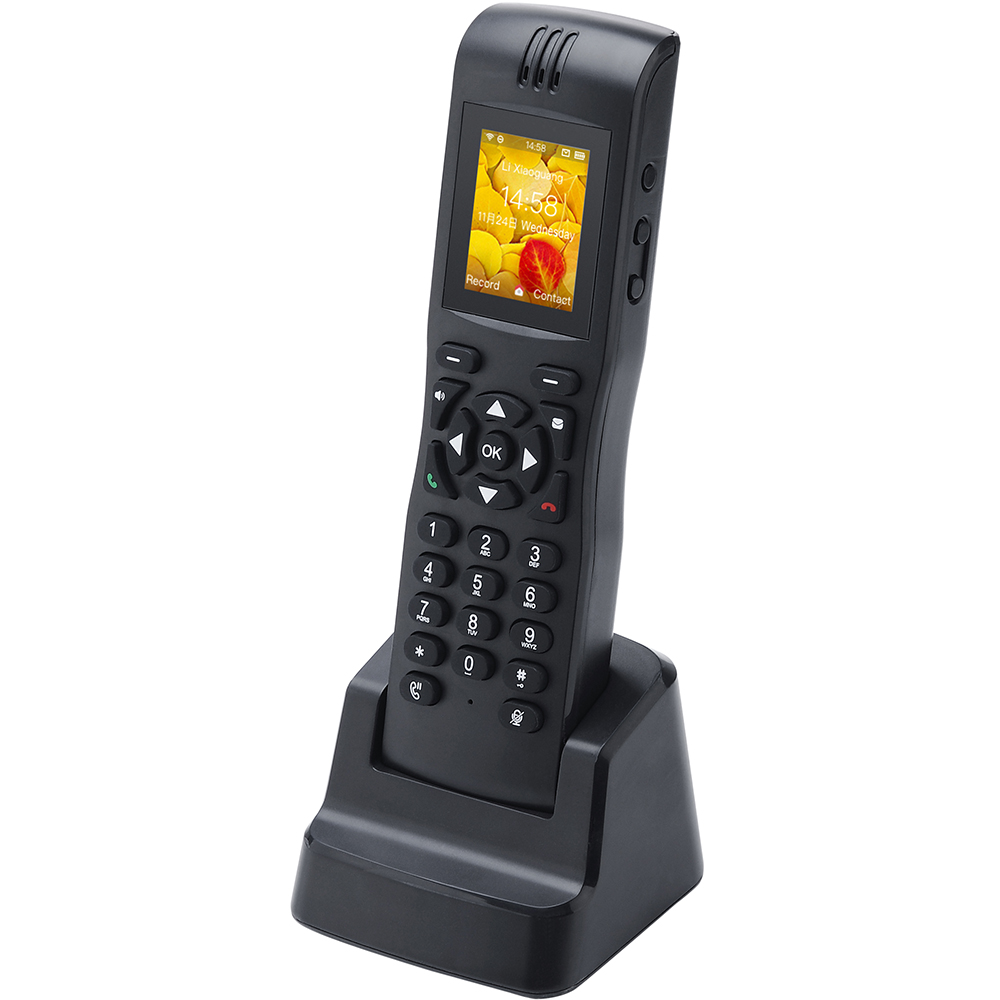

PIP16 Dual-Band Wi-Fi Phone


PIP16 is a new generation of color IP phone, providing convenient communications experience to call a busy corporate office and management personnel.

The built-in internal antenna make user connect the network much easier and more quickly, user can not only connect PIP16 to the network by using an Ethernet cable, but also he/ she can connect PIP16 to the wireless network, the performance is the same as mobile phone.

User can connect the wireless network on PIP11WP’s LCD or on phone’s webpage. PIP16 excellent HD voice quality, rich and leading edge telephony system functions to provide users with personalized information customization, support automatic deployment, advanced security protection mechanism, compatible with a wide range of mainstream industry SIP / IM S platform.

It is a portable cordless Dual Band IP Phone.


Product description

Basic Parameters


• CPU: MT7628(580Mhz)



• 16MB Flash


4000mA Battery





• 1.8 TFT Color Screen


Dual Frequency

2.4G/5G Wireless

Operating System

• Linux 2.6.36


Phone Keys

• 6 Function Keys;         • 2 Soft Keys

• 12 Dialing Buttons (0~9, *, #)


• AC/DC Adapter

AC Input: 100~240V, 50~60Hz

DC Output: 5V, 1A



• Operation Temperature: 0~50 Degree C

• Storage Temperature: -25~ 85 Degree C

• Relative Humidity: 10%~90% No Condensing

Audio Feature

• G.711(A/u);     • iLBC

• G.729AB;      • G.723

• G.726;        • G.722(HD)

• Adaptive Jitter Buffer

• Voice Activity Detection

• Comfort Noise Generation

• Echo Cancellation


Phone Features

• Customized Ring Tone

• SMS (100 Records)

• Call History ( 100 Records )

Most Recently Missed Calls

Most Recently Received Calls

Most Recently Dialed Numbers

• Phone Book (500 Records )


SMS Function;   • DNS SRV

• MAC Address Cloning

• SIP proxy redundancy: dynamic via DNS SRV, A records

Direct IP to IP calling

• NAT Traversal: Traversal by STUN

• Built-in 100M NAT Router

• VPN: PPTP,l2tp,OpenVPN

• QoS with Layer 2 and Layer 3

• DHCP Server and Client

• IP conflict detection

• Support Mutil-Vlan

• Support 2.4GHZ



• Firmware Upgradeable

• Web Management Interface

• Password Management

• Local and Remote Syslog (RFC 3164)

• Auto Provisioning: TFTP, HTTP And HTTPS

• SNTP Time Synchronization

• Multi User Level

• Support TR069 Management Mode

• Support Pearl FCMS Cloud Management


Call Features

• DTMF Relay: In-band, RFC 2833 and SIP info

• Volume Adjustment: Handset, Hand free and Ring

• Call Hold, Call Transfer And Call Waiting


• Music ON Hold

• MWI;   3 Way Conference

• Auto Answer;  • Call Pickup

• Full-duplex Speakerphone

• Dial Rule

• Hotline;      • Redial

• Mute;        • Call Forward



• SIP V2 (RFC 3261,3262,3263,3264)

• SDP (RFC2327)

• RTP/RTCP (RFC1889 and RFC1890)

• NAPTR for SIP URI Lookup (RFC2915)

• STUN (RFC 3489);    • SNTP (RFC 2030)

• ARP/RARP (RFC 826/903)

• IEEE802.11 b/g/n;       • IEEE802.11 ac

• HTTP Server for Web Management

• TFTP/HTTP/HTTPS for Auto Provisioning

• Message Waiting Indicator (RFC3842)

• DHCP Option Codes for SIP (RFC3361)

• DNS/DNS SRV (RFC1706 and RFC 2782)

• IEEE802.1Q VLAN/802.1p and IP TOS

• SNMPV2;   • TR069(TR104/TR098/TR111)
