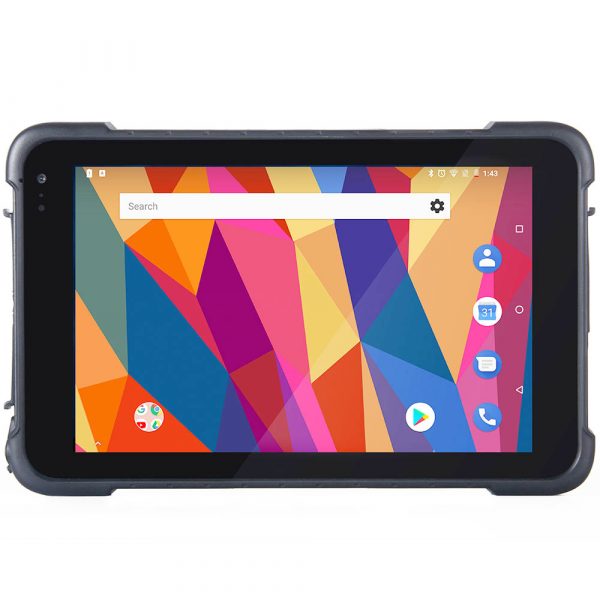

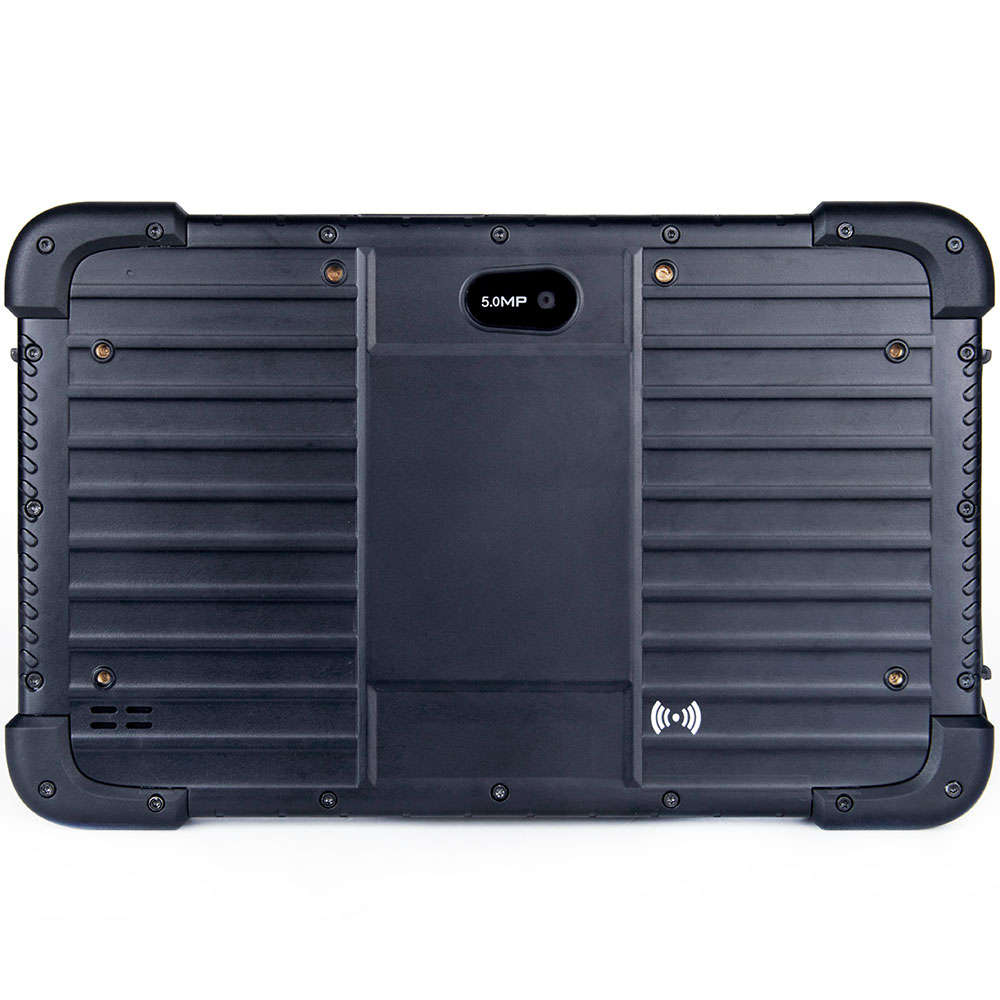

PET86 Rugged Tablet PC
Key Point
1. Had GMS (Google Mobile Service) Certificate Android 8.1
2. Rugged IP67 protective grade for waterproof & dustproof
3. MT8735A CPU/Android 8.1 /Corning gorilla glass TP
4. 1D/2D barcode scanner/NXP NFC (13.56M)
Application
Widely applied in Logistics, Warehouse, Retail, Medical treatment, Services, Vehicle-holder, Smart Factory, Smart Home, Oil Exploration, Vehicle/Pipeline/Outdoor detection, Police Law Enforcement, education, Map Survey&draw, Customs Anti-smuggling, …
Optional Accessories:

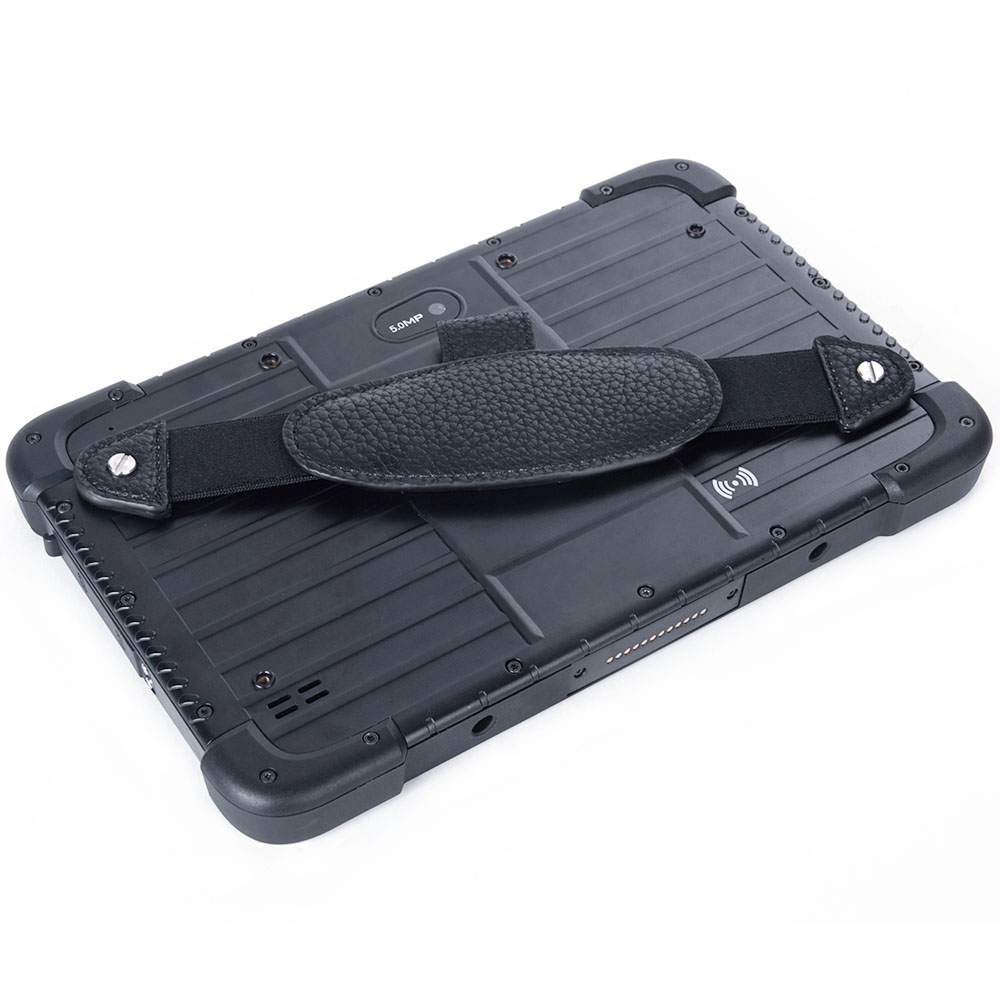

1. Strap
2. Charging docking
3. Vehicle holder
4. Leather cover
Product description
Overview
Specification
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |

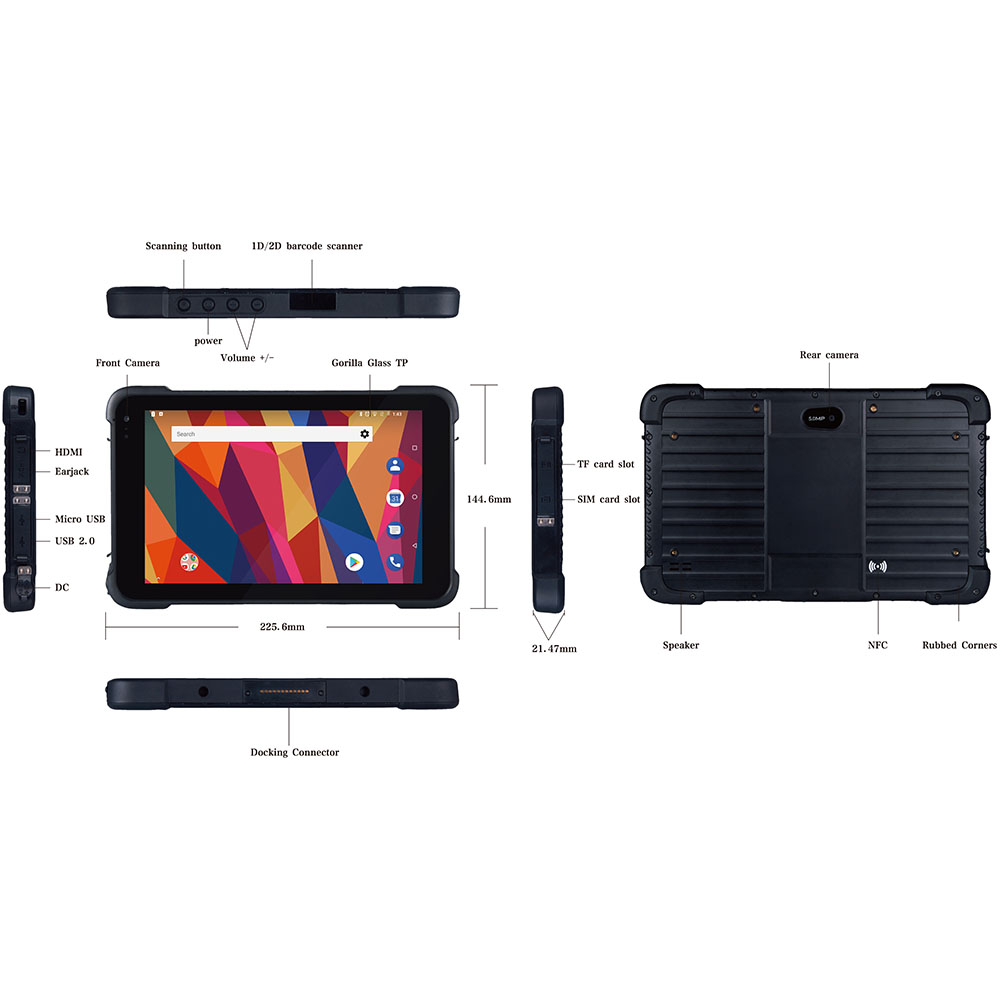

| Dimension | 228*145*16.5mm | |
| Weight | Device unit: 630g, Unit with gift box and standard accessories: 1330g, docking: 290g | |
| Device Color | Black (bottom shell in black, front shell in black) | |
| LCD | Screen Size | 8“ 16:10 |
| Resolution | 800*1280 IPS LCD | |
| Brightness | Minimum 400cd/? | |
| TP | Touch Panel | Multipoint Capacitive, G+G, Rigidity: above 7H-Anti-scratch, TP thickness: 1.1mm, COF, support handwriting |
| Camera | Front | Front: 2.0MP |
| Rear | Rear: 13MP auto-focus with flashlight | |
| Speaker | built-in | Embedded 8Ω/0.8W waterproof speaker x1 |
| Mic | built-in | Sensitivity: -42db, output resistance2.2kΩ |
| Battery | Type | built-in polymer li-ion battery |
| Capacity | 3.7V/8500mAh | |
| Endurance | About 15Hrs (default 50% volumn, default 400 lumens brightness, play 1080P HD video) | |
| System Hardware Configuration | ||
| Type | Details | Description |
| CPU | Type | MTK 8735A Quad Core |
| Speed | 1.45GHZ | |
| GPU | Type | ARM® Cortex-A53 |
| RAM | DDR3L | 2GB LPDDR3 |
| ROM | Emmc | 32GB EMMC |
| Indicator light | built-in | Indicator light of charge, red light will flash when device has low power. red long light when power more than 20%, green long light when full power |
| G-sensor | built-in | Gravity acceleration sensor |
| L-Sensor | built-in | Ambient Light Sensor |
| M-sensor | built-in | Magnetism Sensor (Compass) |
| Gyro-Sensor | Soft | Virtual Gyro |
| Network Connections | ||
| Type | Details | Description |
| Wi-Fi | Wi-Fi module | Wi-Fi 802.11(a/b/g/n) frequency 2.4G+5.8G dual band Wi-Fi, |
| Bluetooth | built-in | BT4.0 (BLE) class1.5 transmission distance: 10m |
| 2G/3G/4GB | built-in | GSM(B1, B2, B5, B8) & WCDMA (B1, B2, B5, B8) & TD-S (B34, B39) & TDD (B38, B39, B40, B41) & FDD (B1, B2, B3, B4, B5, B7, B8, B 17, B 20) |
| GPS | built-in | Integrate MT6255 (four in one chip),Support GPS/BeiDou/Glonass |
| NFC | built-in | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 3cm~5cm |
| Data Collection | ||
| Type | Details | Description |
| 1D | OPTIONAL | MOTO SE655E100R |
| optical resolution: 5mil | ||
| SCAN Speed: 50 times/s | ||
| support code system: UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11 | ||
| 2D | OPTIONAL | Zebra SE2707 Hardware decoder |
| optical resolution:5mil | ||
| scan speed: 50 times/s | ||
| support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse | ||
| Interface Configuration | ||
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | x1 max: 128G |
| USB Interface | Extend external memory and data transfer | Standard USB 2.0*1 Android OTG x1 |
| Earphone Jack | Audio Output | 3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A 3.5mm Power connector x1 |
| HDMI | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Standard Accessories | ||
| Type | Details | Description |
| OTG cable | OTG cable | USB OTG to MICRO USB cable length: 45mm |
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A, USA Standard CE approval |
| Software Configuration | ||
| Type | Details | Description |
| Operation System | OS version | Android 8.1 |
| Product Certificate | ||
| Type | Details | Description |
| Certificate System | IP65 | IPX7, |
| Method name: short time submerging test. | ||
| Test device and test condition: submerge water box. The size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1m. And distance from sample top side to water surface at least 0.15m. | ||
| Testing time: 30 min | ||
| CE NB | Y | |
| MIL-STD-810G | Y | |
| Battery | UN38.3, MSDS, IEC62133 | |
| Reliability | ||
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | -10 °C to 50 °C (-20 °C to 60 °C optional? | |
| Store Temperature | -30 °C to 70 °C | |
| Humidity | Humidity: 95% Non-Condensing | |
