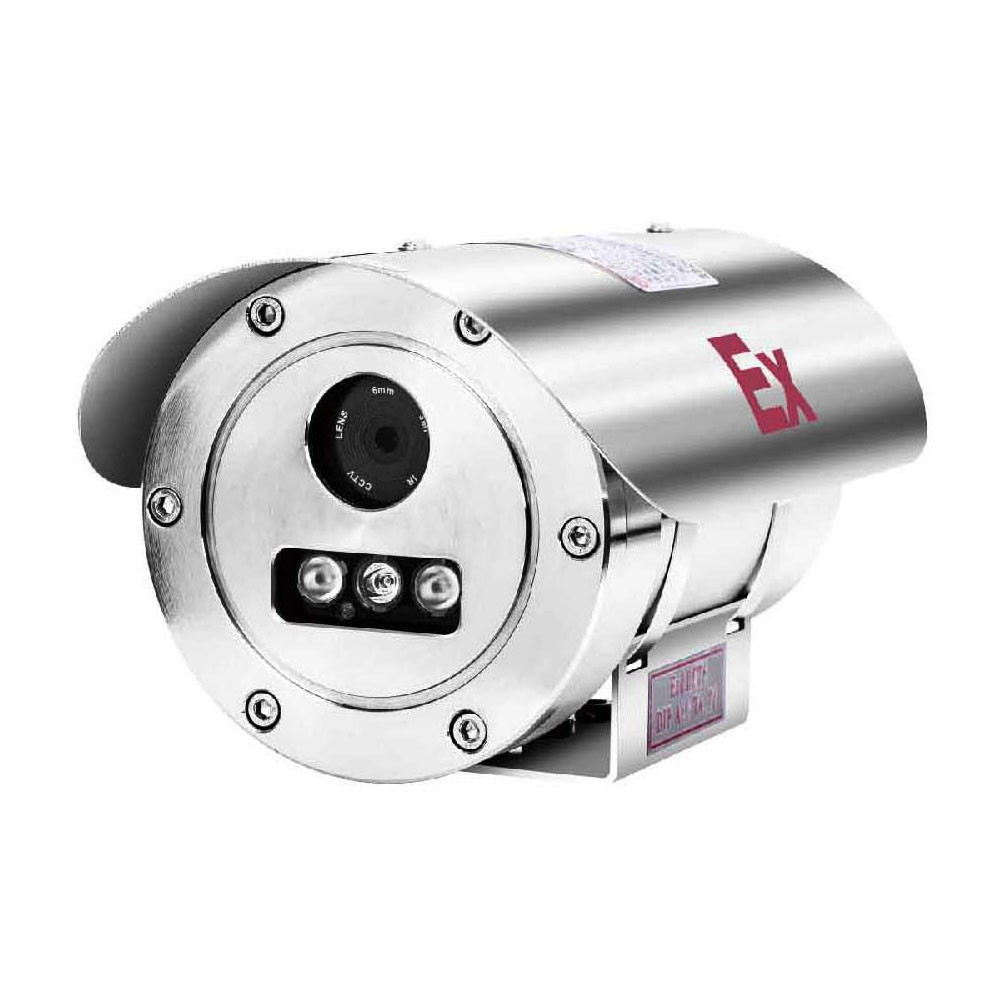

PEMC-EXS1080P Explosion-Proof IR Camera


Applicable for the factories having the explosive mixtures formed from class IIA, IIB and IIC T1-T6 group flammable gas, steam with air in area No.1, No.2,

Appearing the explosive hazardous area due to the mixture of flammable dust and air in area No. 20, No. 21 and No. 22, such as oil field, chemical plant, port, oil storage, steamship, oil drillingplatform, gas stations, coal mine, aviation, military, medicine, steel, firecrackers production, machinery, food processing and storage and so on.

Product description


1. Separate lens from the infrared lamp unique design, completely eliminate infrared light halo and brightened dot, clear, bright and vivid image showed at night. 30m~60m night vision distance, made by corrosion-proof 304 stainless steel , 2 million pixel, H.264/H.265video code, support dual stream, AVI format, 4mm or 6mm and others can be chosen for lens.
2. Matching advanced video compression algorithms operating system, make the transmission of the pictures more fluid and showed more clarity.
3. Support remote visit image via Internet Explorer, support dynamic IP address, it’s convenient to realize the network transmission of the image.
4. IR lamp turned on automatically when lack of visible light, IR CUT shifted day and night, high quality clear detailed vivid picture.
5. Optics class toughened ultra-clear white explosion-proof glass, flux rate higher than 96%.
6. Invisible nano wiper,non-stick water, non-stick oil, dust-proof.
7. Made by high hardness special carbon steel with fluorocarbon baking or stainless steel material, can used in corrosive environment, explosion-proof, dust-proof, and water-proof.
8. Support variable bit rate, while setting video image quality, the video image compress stream can also be limited, video rate 50Kbps-8Mbps continuously adjustable, frame rate 1-30(1-20) continuously adjustable.
9. Support Snapshot, local video, alarm pre-recording, dynamic detection (area and sensitivity can be set), alarm signal input and output.
10. Support I0interface connect other equipment, 10/100M Ethernet interface.
11. RS485 interface, network transparent channel connection, client can though transparent channel control.
12. Support multiple users visiting simultaneously.
13. Host configuration suggestion: CPU Quad-Core 3.0GHz, 4GB memory, 512M independent memory, 2.1sound card, Audio output, Mic input, Windows2000/XP/2003/Vista/7, Microsoft IE6.0/8.0.


Mechanical Features
Material 304 Stainless Steel
Surface Treatment Original Stainless Steel Color
Ingress Protection IP68
Interface Spec G-1/2″
Weight ≤6kg
Method of Installation Wall Mounting
Electrical Features
Power Supply DC12V
Working Current ≤2000mA
Camera Image Sensor 5 Millions Pixel 1/2.5“ CMOS Sensor
Effective Pixel 2 Millions
Lens 4mm/6mm/8mm/12mm
Signal-to-Noise Ratio >52db
Minimum Illumination 0Lux (infra-red on)
Infrared Distance 30m/60m
Wavelength 850nm
Switch Auto (≤10Lux)
Electrical Connectivity Composite Cable
Rated Temperature (-30℃,+70℃)
Atmospheric Pressure 80-106KPa
Realative Humidity ≤95%RH(+25℃)
