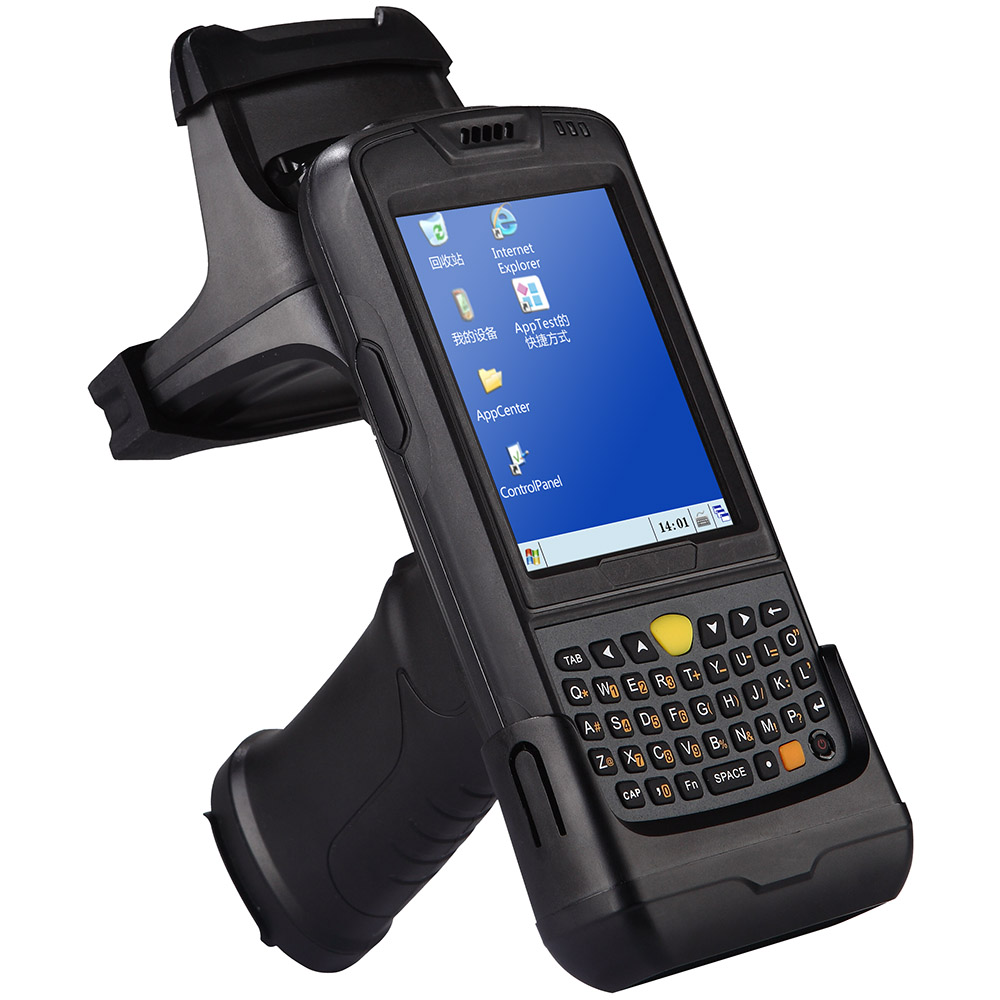

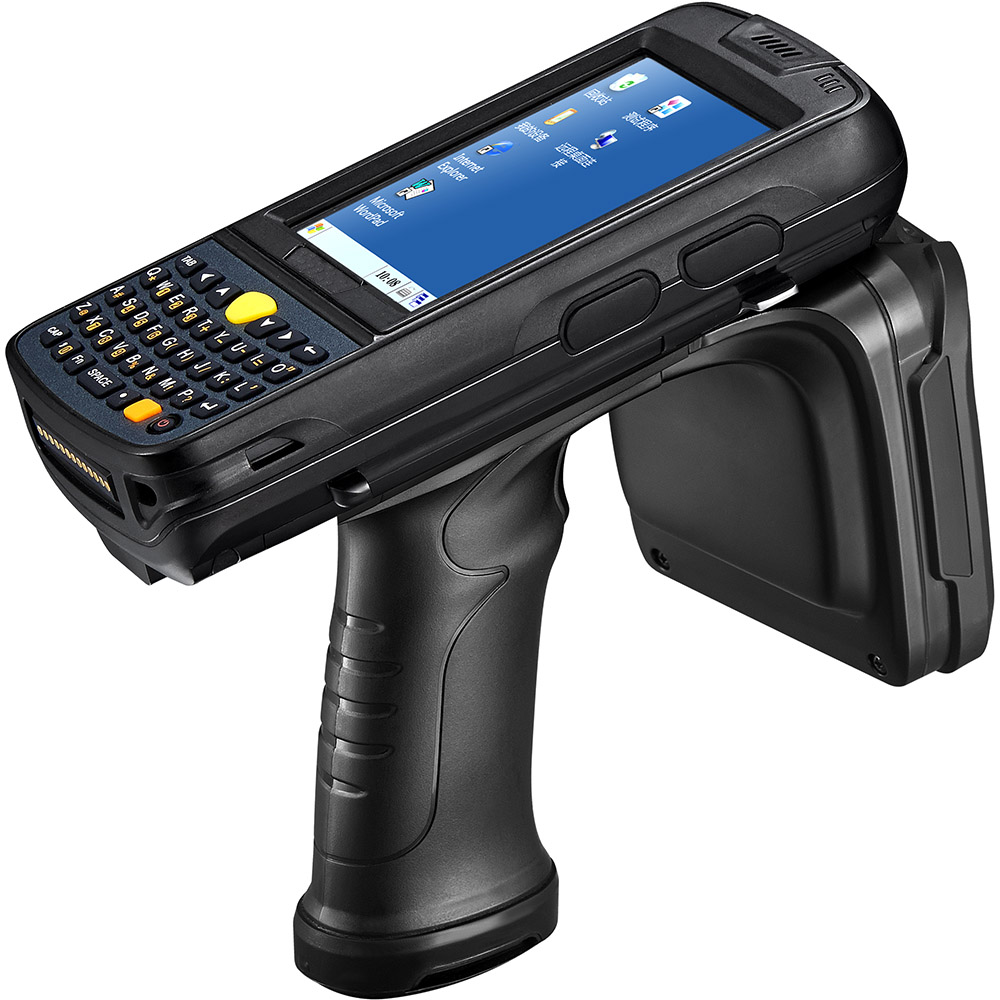

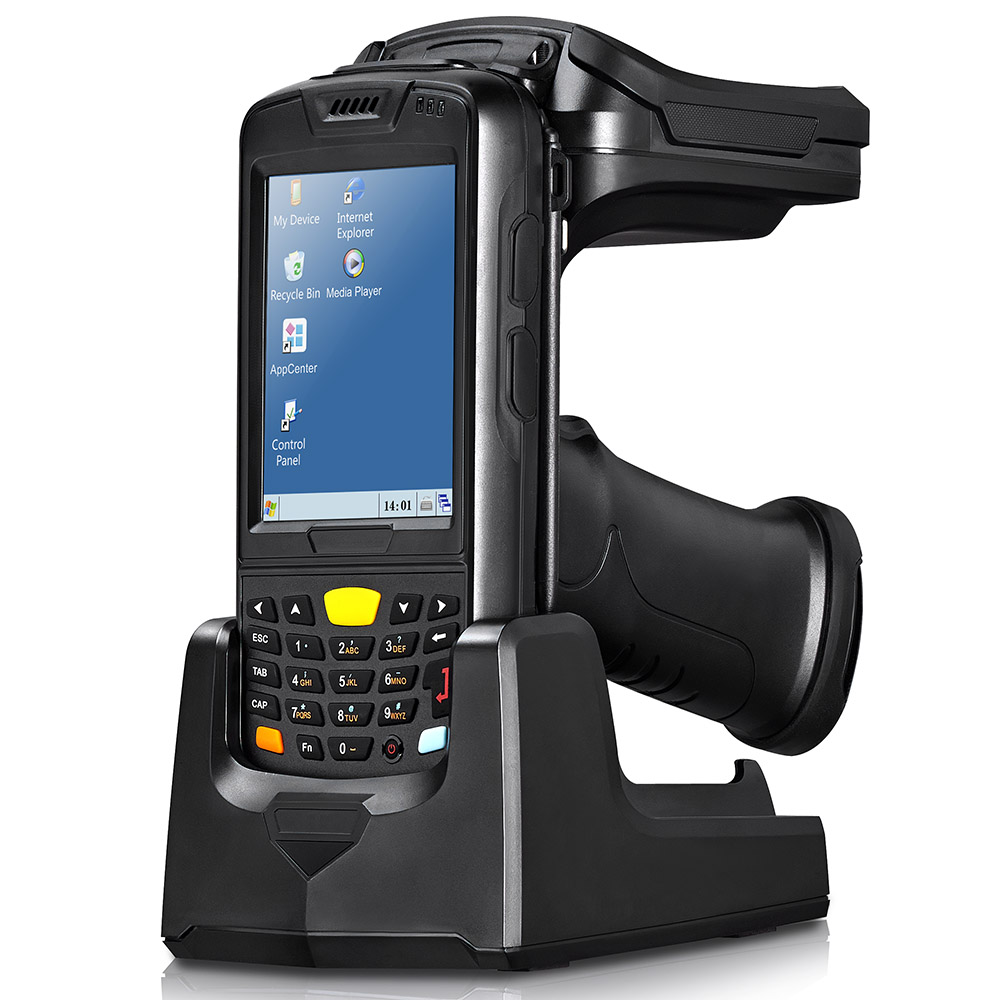

PEC3000UHF Windows Handheld
Windows-based Handheld Computer
This handheld computer provides high performance UHF RFID capability.
It supports EPC C1 GEN2 / ISO18000-6C protocol, and can be equipped with class leading R2000 UHF module or cost-effective UHF module.
Enterprises can deploy it in asset management, retail, warehousing, fleet management and etc.
Product description
Specification
|
Physical Characteristics |
|
|
Dimensions |
192mm×87mm×151mm/ 7.56×3.43×5.94in |
|
Weight |
743g/ 26.21oz |
|
Display |
3.5’’ QVGA (240*320), 6.5M colors |
|
Touch Panel |
Rugged resistive touch panel |
|
Power |
Main battery: Li-ion, 3200mAh |
|
Pistol battery: Li-ion, 5200mAh |
|
|
Expansion Slot |
1 Micro SD (TF) slot |
|
Interfaces |
Micro USB (OTG) |
|
Audio |
0.5W speaker |
|
Keypad |
Numeric / Qwerty |
|
Performance |
|
|
CPU |
Cortex-A8 800MHz |
|
RAM+ROM |
256MB+4GB |
|
Expansion |
Supports up to 32GB Micro SD card |
|
Developing Environment |
|
|
Operating System |
Windows Embedded CE 6.0 |
|
SDK |
Software Development Kit |
|
Language |
C++, C#, VB.NET |
|
Tool |
Visual Studio 2005/2008 |
|
User Environment |
|
|
Operating Temp. |
-4oF to 122oF / -20oC to 50oC |
|
Storage Temp. |
-40oF to 158oF / -40oC to 70oC |
|
Humidity |
5%RH – 95%RH non condensing |
|
Drop Specification |
Multiple 1.5m drops to concrete across the |
|
operating temperature range |
|
|
Tumble Specification |
1000×0.5m/1.64ft falls at room temperature |
|
Sealing |
Host IP65 per IEC sealing specifications |
|
Communication |
|
|
WLAN |
IEEE802.11 a/b/g/n |
|
Bluetooth |
Bluetooth 2.0+EDR |
|
Barcode Scanning (Optional) |
|
|
1D Linear Scanner |
|
|
1D Laser / CCD |
Honeywell N4313/ Zebra SE965 |
|
Symbologies |
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
|
2D Imager Scanner |
|
|
2D CMOS Laser Scanner |
Zebra SE4500 |
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
|
RFID |
|
|
UHF |
|
|
Engine |
CM-1 module based on Impinj Indy R2000 |
|
Frequency |
865MHz-868MHz / 920-925MHz / 902-928MHz |
|
Protocol |
EPC C1 GEN2 / ISO18000-6C |
|
Antenna |
Linear polarization (1.8dBi); circular polarization (4dBi) |
|
Power |
1W (30dBm, +5dBm to +30dBm adjustable) |
|
R/W range |
>4.5m (linear polarization); >8m (circular polarization) |
|
Reading rate |
>200 tags/s (circular polarization) |
|
* Range and rate depend on tags and environment |
|
|
Fingerprint (Optional) |
|
|
Functions |
Fingerprint enrollment, match, storage etc. |
|
Sensor |
TCS1 / TCS2SS (Capacitive) |
|
Image Size (pixel) |
TCS1: 256×360; TCS2SS: 208×288 |
|
Sensing Area (mm) |
TCS1: 12.8×18; TCS2SS: 10.4×14.4 |
|
Resolution (dpi) |
508 |
|
Standard |
TCS1: FIPS, STQC; TCS2SS: ISO |
