PEC71 Android Mobile Computer


Android-based Handheld Computer

PEC71 is an industrial-grade rugged mobile computer with high extensibility. Built with Android 8.1 OS and Octa-Core processor, it supports abundant optional functions, including barcoding, NFC, HF, UHF, iris/fingerprint recognition, Infrared, PSAM and camera, etc.

The excellent performance makes PEC71 ideally deployed in logistics, retail, warehousing, healthcare, power, card, parking charge, government projects to help users quickly achieve informatization management and improve operational efficiency.

PEC71F – Fingerprint


PEC71I – Infrared

Product description


CPU Cortex-A53 Quad-core 1.45GHz
Expansion Supports up to 128 GB Micro SD card
Operating System Android 6.0
CPU Cortex-A53 Octa-core 2.5GHz
Expansion Supports up to 128 GB Micro SD card
Operating System Android 8.1
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN(Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (Others) Depending on the country’s ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (China) 2G: 900/1800MHz
3G: WCDMA: B1,B8
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B1,B3,B5,B7,B8,B20,B40
WWAN(America) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B2,B4,B7,B12,B17,B25,B66
WWAN (Others) Depending on the country’s ISP
Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Physical Characteristics
Dimensions 164.2*78.8*17mm/6.46*3.10*0.67in (for standard version)
Weight <288g/10.15oz (for standard version)
Display 5.2” IPS FHD 1920×1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, built-in 5000mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card, three choice two
Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor, vibration motor
Developing Environment
SDK Software Development Kit
Language Java
Tool Eclipse / Android Studio
User Environment
Operating Temp. -4oF to 122oF / -20oC to 50oC
Storage Temp. -40oF to 158oF / -40oC to 70oC
Humidity 5%RH – 95%RH non condensing
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Sealing IP65/IP67 per IEC sealing specifications
ESD ±15KV air discharge, ±6KV conductive discharge
Data Collection
Rear Camera 13MP Autofocus with flash
Front Camera (optional) 5MP camera
Barcode Scanning (optional)
1D Linear Scanner (Quad-core) Zebra SE965 / Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner (Quad-core) Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
2D Imager Scanner (Octa-core) Zebra: SE2707
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Iris (optional)
Rate <150ms
Range 20-40cm
FAR 1/10000000
Protocol ISO/IEC 19794-6,GB/T 20979-2007
*Iris is alternative to front camera.
HF (optional)
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693
Chips M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81), CPU_A card, CPU_B card, ICODE II, TI2048, LRI64K, Others for customization
Range 3-8cm
NFC (optional)
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4cm
UHF (optional)
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
* For detailed specification, please check UHF data sheet
InfraRed (optional)
Frequency 38kHz
* For detailed specification, please check InfraRed data sheet
Fingerprint (optional)
Sensor Capacitive TCS1/TCS2; Optical Morpho CBM-E3
* For detailed specification, please check Fingerprint data sheet
PSAM (optional)
Card slot 2 slots for PSAM cards
Protocol ISO7816 T=0, T=1
Standard AC Adaptor, USB Cable, Lanyard, etc.

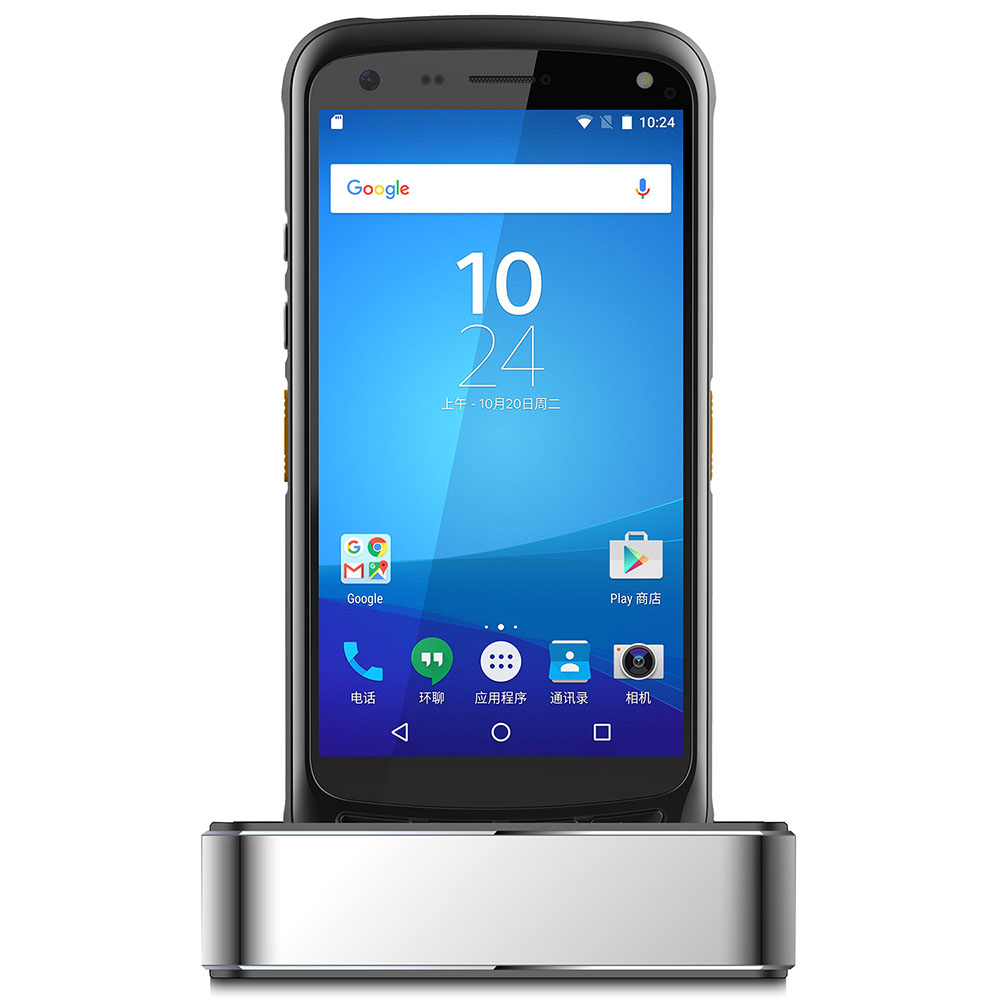

Optional Cradle, Holster, etc.
* For detailed specification, please check Accessory Guide.

Model and Picture

Model No.

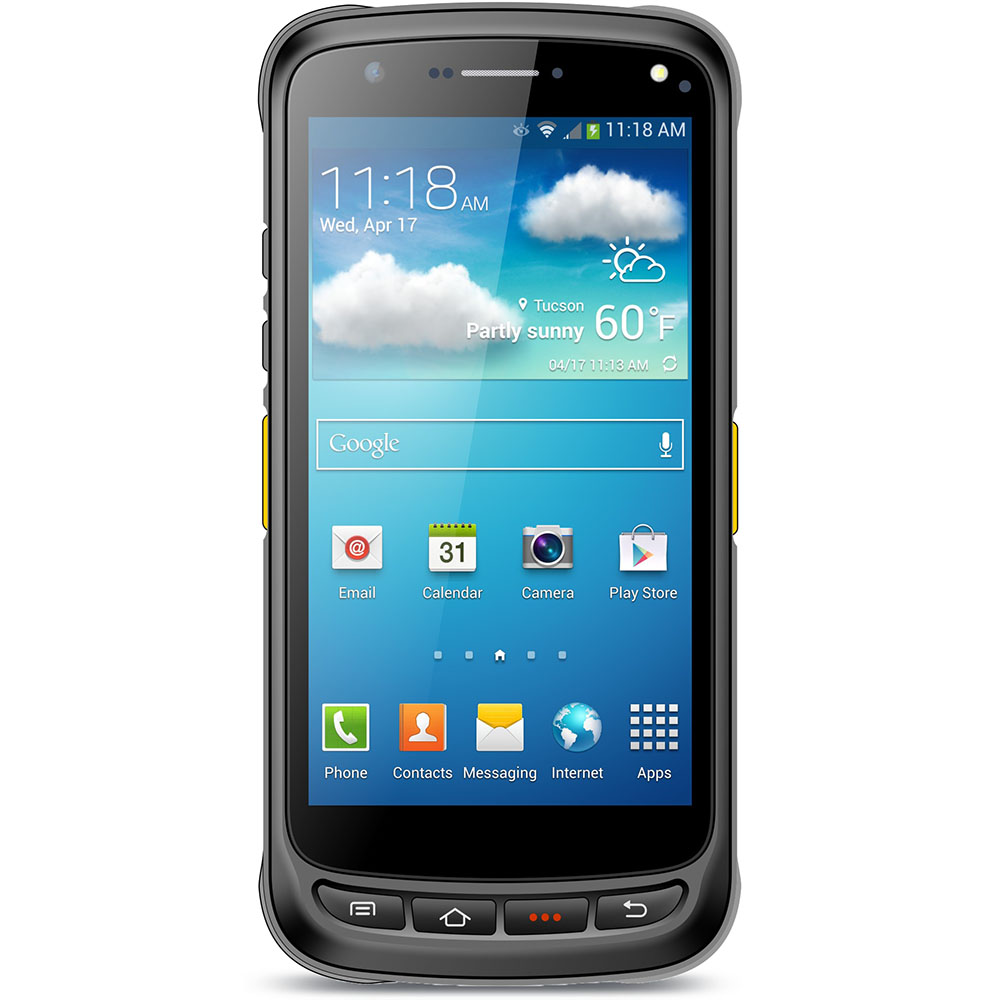

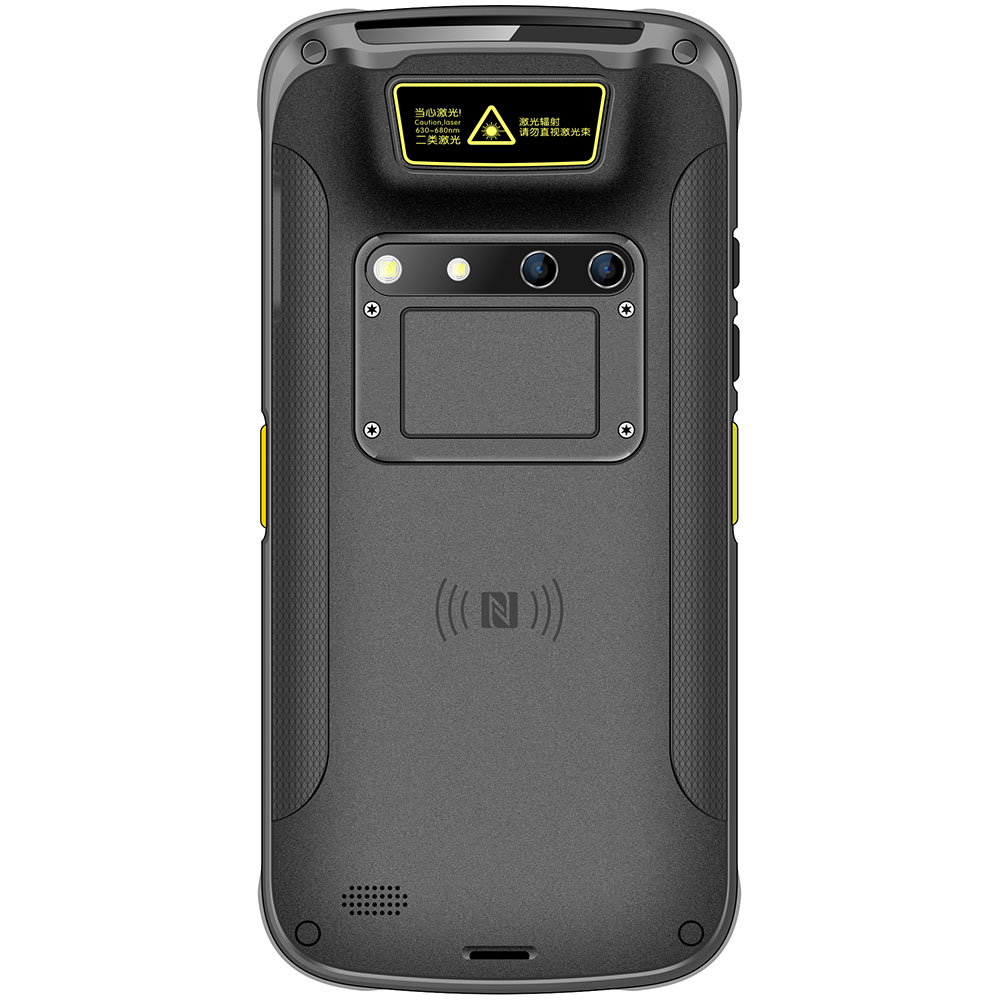

PEC71 – basic

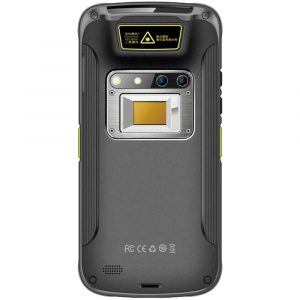

PEC71CF – Capacitive FingerPrint – TCS1

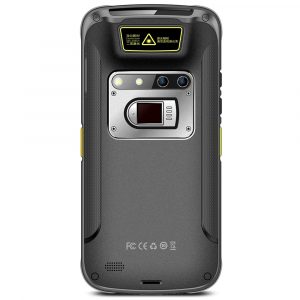

PEC71CF – Capacitive FingerPrint – TCS2

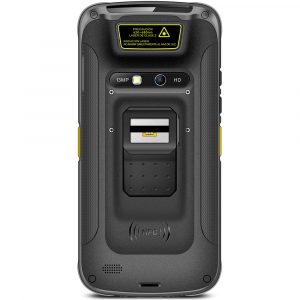

PEC71OF – Optical FingerPrint

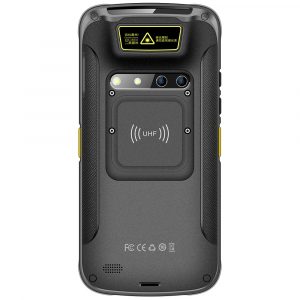

PEC71U – UHF RFID Reader

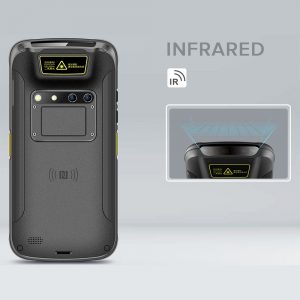

PEC71I – InfraRed
